Log Splitter Gear Pumps

description:

1.General Description

The Log Splitter Gear Pumps consists of a big displacement, low pressure pump and a small displacement, high pressure pump, a check valve as well as a relief valve. When working at the pressure lower than the relief pressure, both big and small pump supply volume. When working at a high pressure, only small pump supplies volume, which highly reduces the power consumption. The Log Splitter Gear Pumps is widely used in log splitter, press, machine tools.

2.Order Code

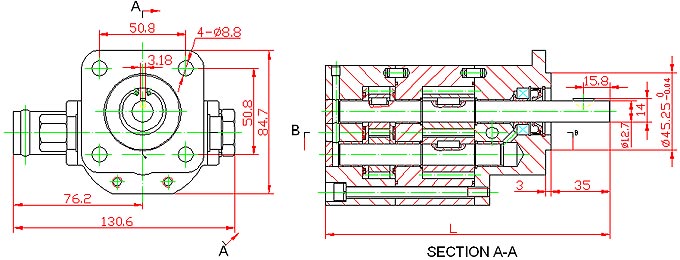

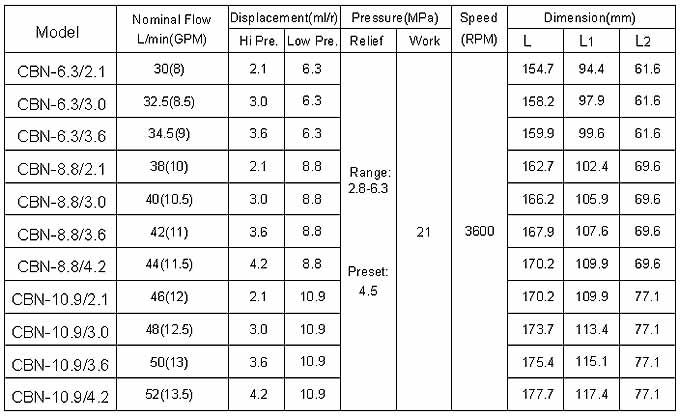

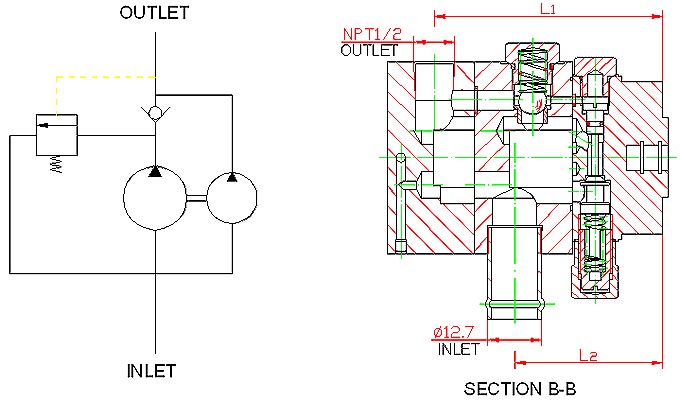

3.Outline and Technical data

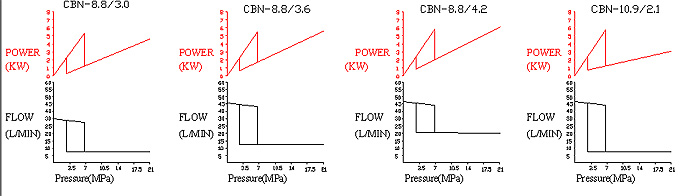

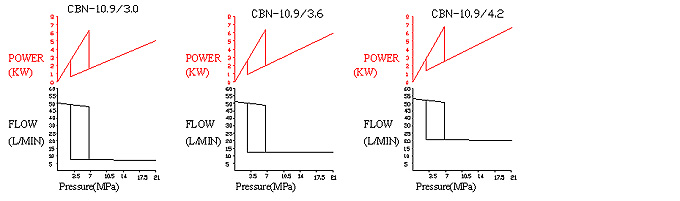

4.Performance Curve(@3600RPM,N46 Oil)
