Group 2 series gear pump

description:

1. General Description
      The CB2A series gear pump consists of  a gear pair supported by two aluminum bearing blocks, a housing, front cover and rear cover.The axis clearance can be automatically compensated by the bearing blocks. The CB1A pump features simple structure, high mec mechanical and volumetric efficiency, low noise level as well as high reliability. It is widely used in the hydraulic system of truck ,lift and transport machinery,mine machinery, and agriculture machinery,etc.

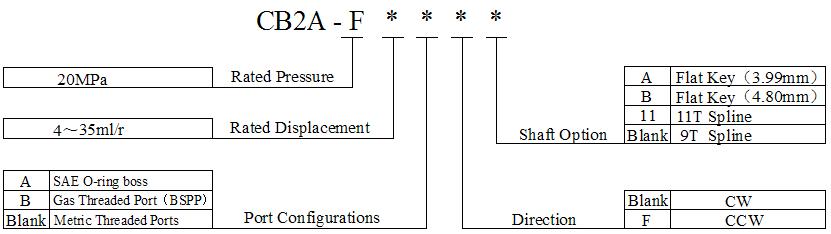

2. Order

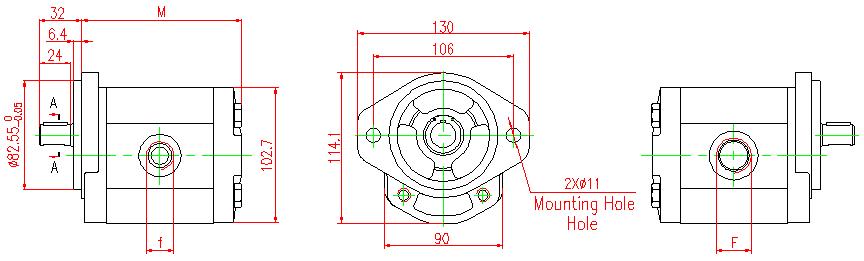

3. Outline Dimension

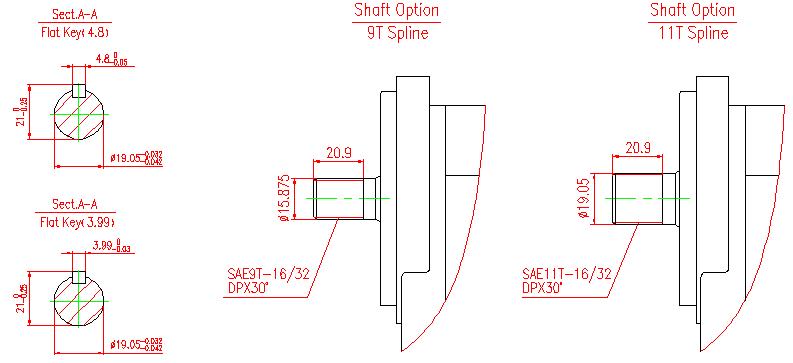

4. Shaft Option

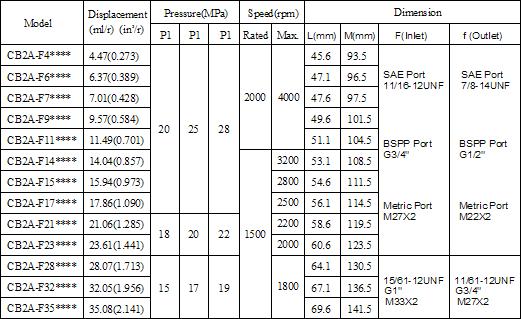

5. Technical Data
