CBS-F*F Series Gear Pump

description:

1.General Description

    Equipped with a relief valve and a check valve, the CBS series product is a small displacement, high pressure  gear pump whose axial clearance is compensated automatically by the floating side plates.   Its STN mounting dimenstion and SAE spline shaft enable it to enjoy a good market share in the US and European countries. It is easy to get a "power up, gravity down" circuit by combination of a CBS pump and a 2 way, 2 position release valve.

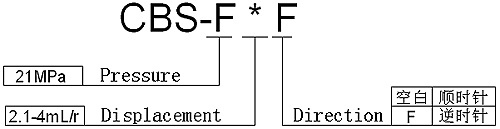

2.Order Code

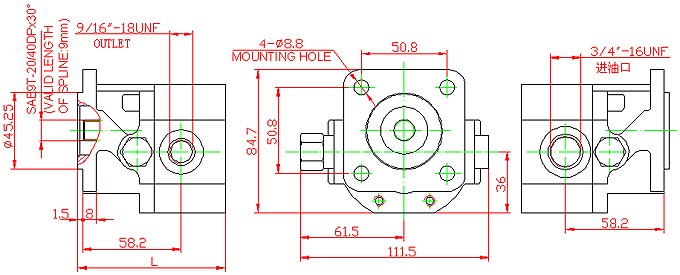

3.CBS-F*F outline

4.Hydraulic Schematic

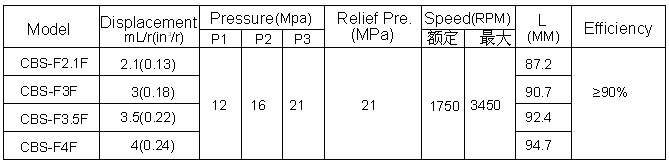

5.technical data
