CBK Series Gear Pump

description:

1.General Description

The CBK series gear pump consists of a gear pair supported by two aluminum bearing blocks, a housing, front cover and rear cover.The axis clearance can be automatically compensated by the bearing blocks. The CBK pump features high mechanical and volumetric efficiency, low noise level as well as low weigh/power ratio. Both CW and CCW direction pump are available.

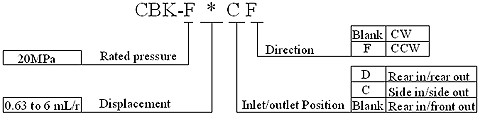

2.Order Code

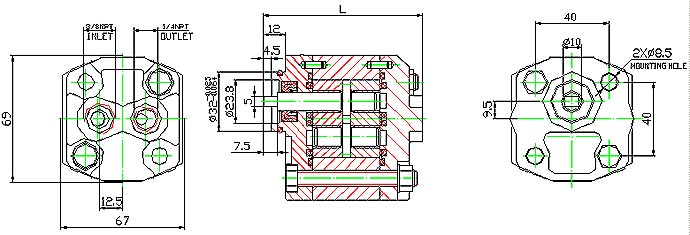

3.CBK-F*F outline and technical data

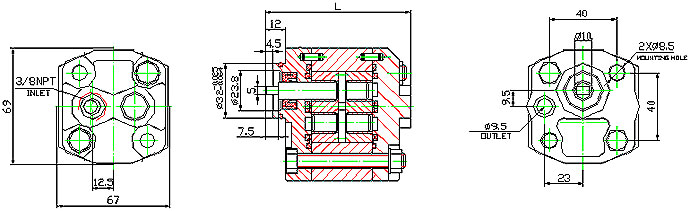

4.CBK-F*CF outline and technical data

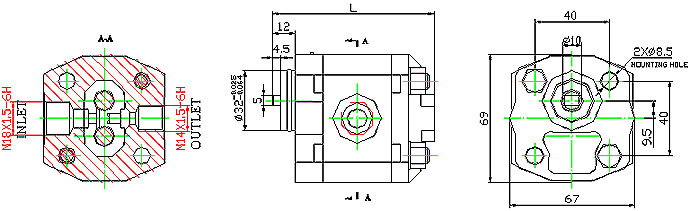

5.CBK-F*DF outline and technical data

6.Technical data
