2CY Series Geat Pump

description:

1.General Description

The Oil Delivering Gear is used to deliver a variety of oil and other lubricating medium, such as petroleum, heavy oil with the temperature under 60 degrees. The Lubricating Gear pump is widely used in universal machine tools , Lubricating systerm of mining or plastic machines. The oil temperature should between 10 and 50℃. A resilient coupling is adopted to connect the motor and the pump, both of which are mounted on a cast-iron foundation.

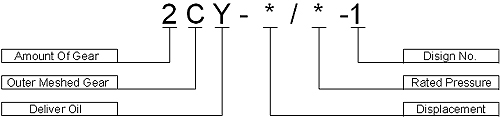

2.Order Code

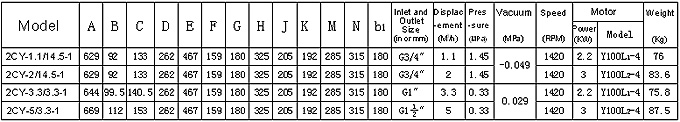

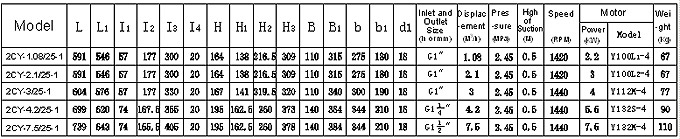

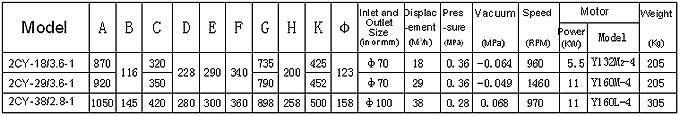

3.Outline and technical data

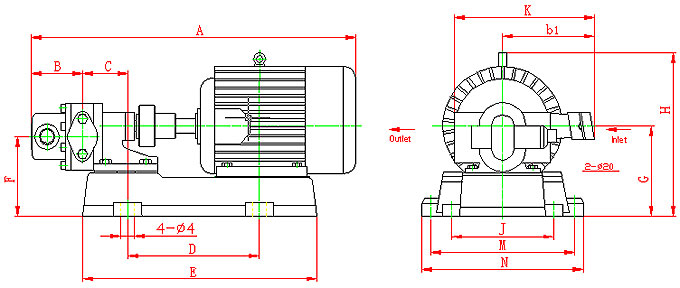

(1) The Oil Delivery Gear Pump

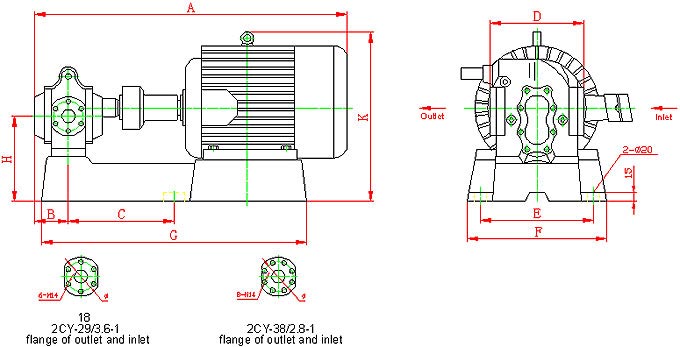

(2)The Lubricating Gear
